디자인 Design
건축사사무소 이담 Edam Architects & Associates
책임 건축가 Architect in Charge
정봉찬 Bongchan Jeong
건물 위치 Location
경기도 오산시 Osan-si, Gyeonggido
건축 형태 Type
신축 New-built
건축 용도 Programme
근린생활시설 Commercial Facilities, 다가구주택 Multi Family House
대지 면적 Site area
436.60 ㎡
건축 면적 Building area
260.90 ㎡
연면적 Total floor area
838.29 ㎡
규모 Building scope
4F
주요 구조 Main Structure
조적식구조 Masonry, 철근콘크리트 RC
외장 마감재 Exterior finish
벽돌 Brick, 스터코 Stucco
완공 연도 Year completed
2016
사진가 Photographer
김재윤 Jaeyoun Kim

오산 옥상옥 Osan T-Seven

건축사사무소 이담 Edam Architects & Associates
©Jaeyoun Kim
글 & 자료. 건축사사무소 이담  Edam Architects & Associates



상가주택이 주변과 접하는 방식은 근린생활시설의 그것과 대동소이하다. 대개 창문 크기나 외벽 재료의 차이만으로 상가와 구분된다. 주택은 상가들 위에 단지 얹혀진 채, 법적 제한 및  하부 상가에서 유래한 형태 위에서 겨우 주택으로 기능할 뿐이다.

In Korea, the methodology of how a residential area of a Mixed-Use meets surroundings is not much different from the one of a shopping area to surroundings and, usually, the residential area can be distinguished by a size of windows and a material type. Many others in Osan-si is not exceptional; The residential area is simply put on the shops, only reflecting the floor plan of the shops below and barely functioning with numerous related legal limitations.



CONCEPT ©Edam Architects & Associates
©Jaeyoun Kim
©Jaeyoun Kim
©Jaeyoun Kim
sketch_3 ©Edam Architects & Associates
횡단면도 ©Edam Architects & Associates



오산 상가주택에서는 이같은 문제를 테라스를 활용해 극복하고자 했다. 테라스가 주변 번잡한 상업환경과 거리를 만들고 침실을 둘러싸는 전이공간 역할을 담당해 거주자에게 좀 더 평온한 환경을 제공하고 주택의 외부 공간을 좀 더 풍부하게 만들길 기대한다.

The project, however, attempts to overcome these limitations by utilizing the terrace which is expected to provide the distance/gap and transitional space between residential area and surrounding busy commercial area in order to deliver a calm living environment and a rich exterior space.



©Jaeyoun Kim
©Jaeyoun Kim
©Jaeyoun Kim
©Jaeyoun Kim
©Jaeyoun Kim



내부에서는 침실과 주방/식당의 경계를 개방된 가구로 구획해 무표정할 수 있는 다가구 주택의 내부에 공간적인 변화를 도모했다. 상가공간은 도로에서 직접 진입하는 외부 계단을 계획하는 한편, 외벽재료를 2층 내부홀까지 연장해 보행자의 접근성을 향상시키고 방문자에게 색다른 경험을 제공하도록 했다.

In the interior of the residence, the furniture-wall is planned to separate the kitchen/dining and bedroom area, providing dynamic spatial fun unlike a uniformly-designed Mixed-Use interior space in general.
And the shop has the exterior stair which is directly approachable from the sidewalk and its exterior material is extendedly used into the hall of the second floor with an attempt to convey better approachability and a unique experience to customers and visitors.



3층-평면도 ©Edam Architects & Associates

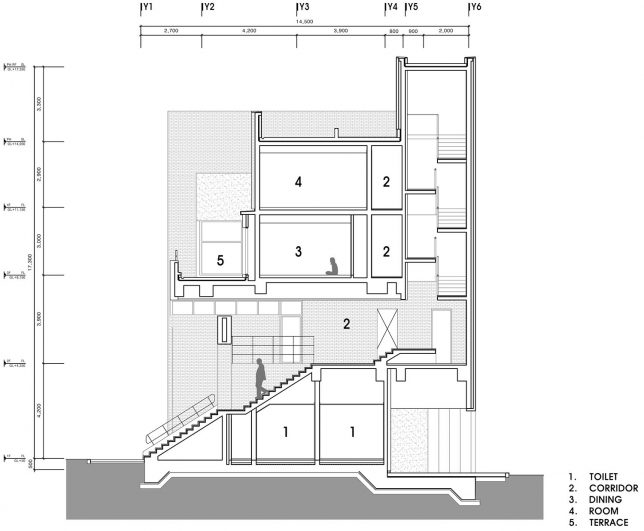

종단면도 ©Edam Architects & Associates
©Jaeyoun Kim
©Jaeyoun Kim

디자인 Design
건축사사무소 이담 Edam Architects & Associates
책임 건축가 Architect in Charge
정봉찬 Bongchan Jeong
건물 위치 Location
경기도 오산시 Osan-si, Gyeonggido
건축 형태 Type
신축 New-built
건축 용도 Programme
근린생활시설 Commercial Facilities, 다가구주택 Multi Family House
대지 면적 Site area
436.60 ㎡
건축 면적 Building area
260.90 ㎡
연면적 Total floor area
838.29 ㎡
규모 Building scope
4F
주요 구조 Main Structure
조적식구조 Masonry, 철근콘크리트 RC
외장 마감재 Exterior finish
벽돌 Brick, 스터코 Stucco
완공 연도 Year completed
2016
사진가 Photographer
김재윤 Jaeyoun Kim
